Motion and Twilight Sensor for Stair Lighting – 12V DC, 10A, Adjustable Range, Time & Lux Settings

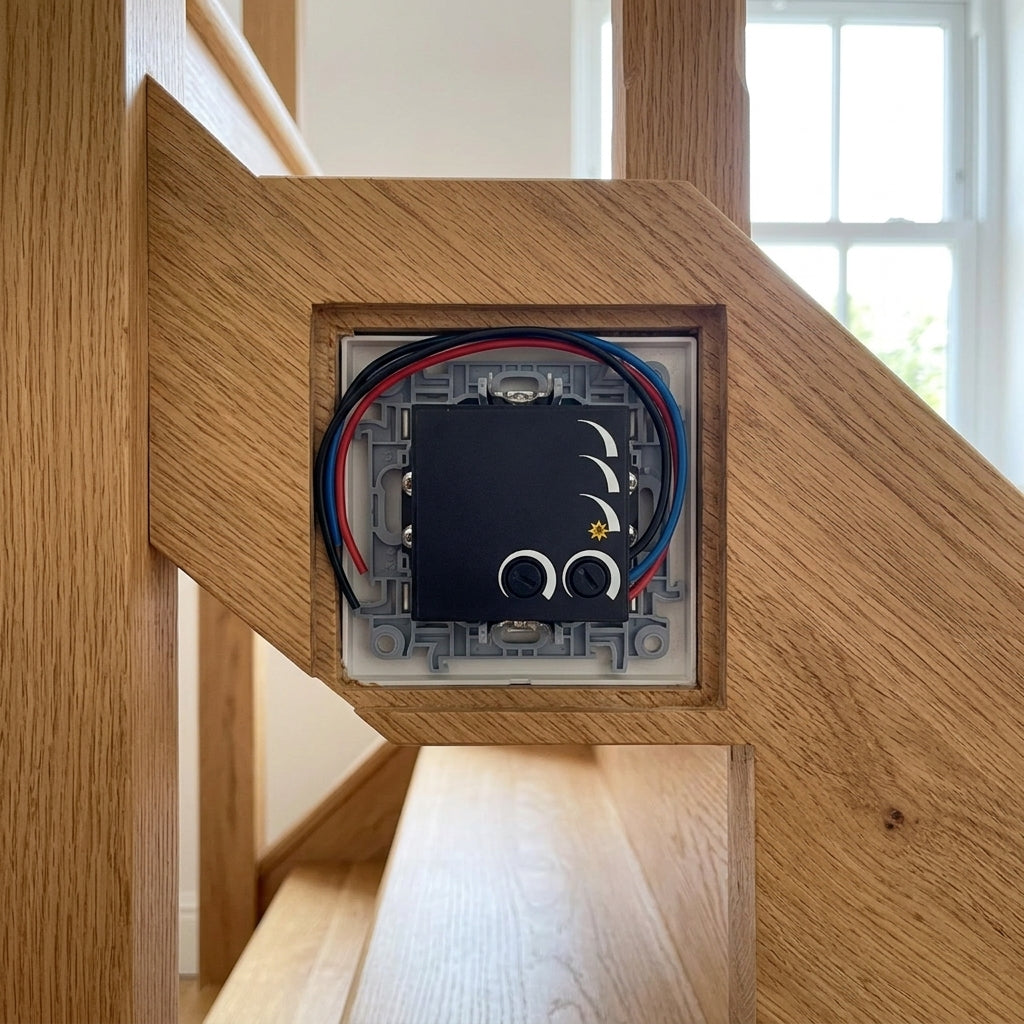

A combined motion and twilight (dusk) sensor for automatic stair and LED lighting, with a miniature lens for discreet indoor installation.

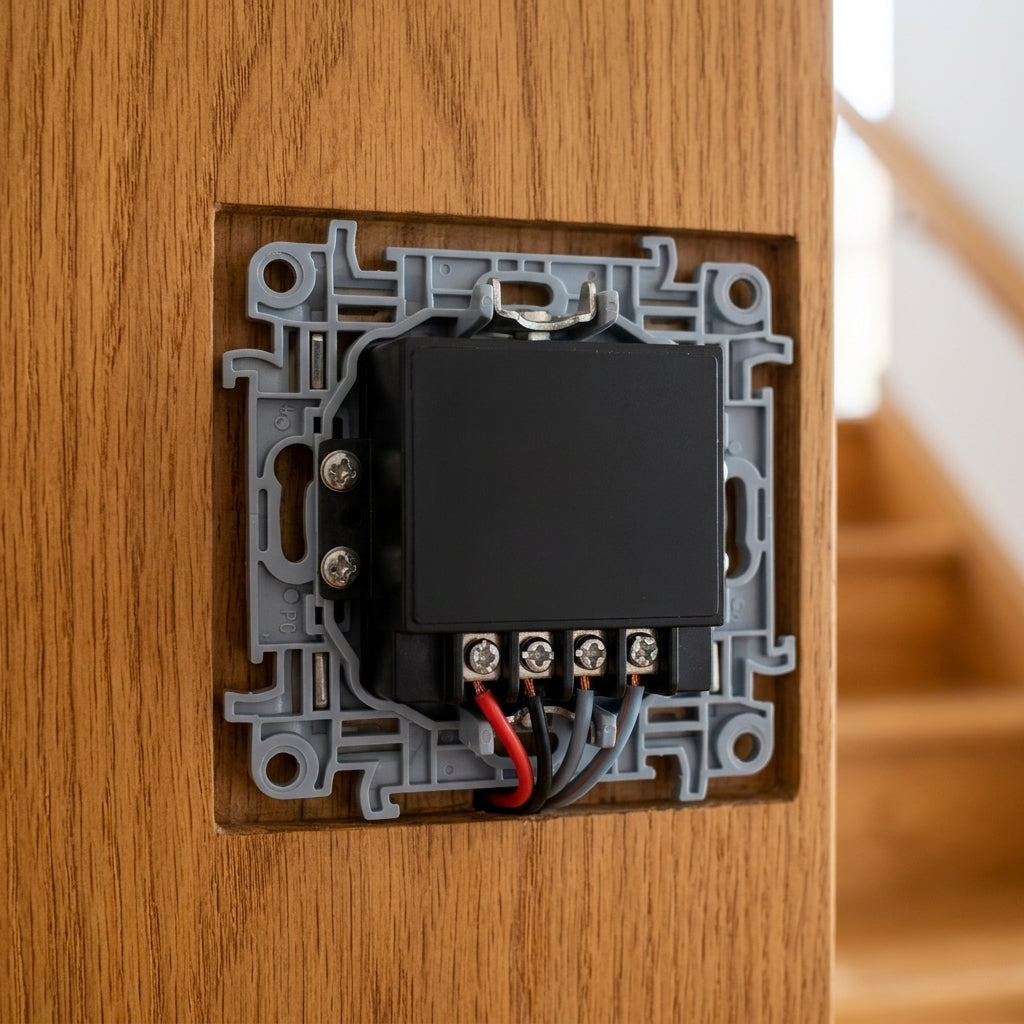

This 12V/10A sensor can be used with intelligent controllers for automatic lighting activation. Its universal mechanical-electrical design also lets it work as a standalone motion detector that switches the lighting on directly.

Key Features

• Activation based on surrounding light level (LUX potentiometer)
• Adjustable relay hold time (TIME potentiometer)
• Adjustable detection range (METER potentiometer)
• Load up to 10A

Technical Details

• Power supply: 12V DC
• Maximum load: 10A
• Detection angle: 20 degrees
• Detection range: 0.25–3m (at 22°C); smooth non-linear adjustment from 0.4m to 2m
• Hold time: smooth adjustment from impulse 0.5 to 5 minutes
• Dusk sensor adjustment: smooth, from below 3 lux to 2000 lux
• Operating range: NO
• Operating temperature: -10°C to +25°C
• Operating humidity: below 93% RH

Usage

For on/off systems using 12V LED strips or LED bulbs.

Please Note

Adjust the potentiometers with a narrow screwdriver with a maximum blade width of 1.8mm. Warning: mechanical damage to the potentiometers is not covered by the warranty.
